K-anthal A1 strips 0.3mm thickness with 6.7mm width used for heating element of glass industry
1. Description
FECRAL Has been used extensively as heating elements in industrial furnaces and electrical kilns.
FECRAL Has less hot strength than Tophet alloys but much higher melting point.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
We also produce below grades:
Alkrothal 14, Alloy 750, Alferon 902, Alchrome 750, Resistohm 125, Aluchrom, 750 Alloy, Stablohm 750
TANKII A1, TANKII, Alloy 875, Resistohm 145, Aluchrom 0, Alchrome 875, MWS-875, Stablohm 875, KAF TANKII AF, Resistohm Y, Aluchrom Y, Alloy 837, AF KAPM KAPM, Alloy 875 PM, TANKII APM
TANKII D, TANKII, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135, Aluchrom S, Stablohm 812
2.Specification
1).Locomotive resistance strip:
Thickness:0.6mm-1.5mm
Width:60mm-90mm
2).Electric ceramic cooktop resistance strip:
Thickness:0.04mm-1.0mm
Width:5mm-12mm
Thickness&Width:(0.04mm-1.0mm)×12mm(above)
3).Low resistance ribbon:
Thickness&Width:(0.2mm-1.5mm)*5mm
4).Industrial furnace ribbon:
Thickness:1.5mm-3.0mm
Width:10mm-30mm
5).Wire: Diameter:0.05mm-10.0mm
3. Details of tankii strips
Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
|
Properties Grade
| 1Cr13Al4
| 0Cr25Al5
| 0Cr21Al6
| 0Cr23Al5
| 0Cr21Al4
| 0Cr21Al6Nb
| 0Cr27Al7Mo2
|
Main Chemical Composition
(%)
| Cr
| 12.0-15.0
| 23.0-26.0
| 19.0-22.0
| 22.5-24.5
| 18.0-21.0
| 21.0-23.0
| 26.5-27.8
|
Al
| 4.0-6.0
| 4.5-6.5
| 5.0-7.0
| 4.2-5.0
| 3.0-4.2
| 5.0-7.0
| 6.0-7.0
|
Re
| opportune
| opportune
| opportune
| opportune
| opportune
| opportune
| opportune
|
Fe
| Bal.
| Bal.
| Bal.
| Bal.
| Bal.
| Bal.
| Bal.
|
|
|
|
|
|
| Nb0.5
| Mo1.8-2.2
|
Max Continuous Service Temperature(oC)
| 950
| 1250
| 1250
| 1250
| 1100
| 1350
| 1400
|
Resisivity 20oC (Ωmm2/m)
| 1.25
±0.08
| 1.42
±0.06
| 1.42
±0.07
| 1.35
±0.07
| 1.23
±0.07
| 1.45
±0.07
| 1.53
±0.07
|
Density(g/cm3)
| 7.4
| 7.1
| 7.16
| 7.25
| 7.35
| 7.1
| 7.1
|
Thermal Conductivity
| 52.7
| 46.1
| 63.2
| 60.2
| 46.9
| 46.1
| 45.2
|
(KJ/m@h@oC)
|
Coefficient of Thermal Expansion(α×10-6/oC)
| 15.4
| 16
| 14.7
| 15
| 13.5
| 16
| 16
|
Approximate Melting Point( oC)
| 1450
| 1500
| 1500
| 1500
| 1500
| 1510
| 1520
|
Tensile Strength(N/mm2)
| 580-680
| 630-780
| 630-780
| 630-780
| 600-700
| 650-800
| 680-830
|
Elongation(%)
| >16
| >12
| >12
| >12
| >12
| >12
| >10
|
Section Variation
| 65-75
| 60-75
| 65-75
| 65-75
| 65-75
| 65-75
| 65-75
|
Shrink Rate (%)
|
Repeatedly Bend Frequency(F/R)
| >5
| >5
| >5
| >5
| >5
| >5
| >5
|
Hardness (H.B.)
| 200-260
| 200-260
| 200-260
| 200-260
| 200-260
| 200-260
| 200-260
|
Continuous Service Time
| no
| ≥80/1300
| ≥80/1300
| ≥80/1300
| ≥80/1250
| ≥50/1350
| ≥50/1350
|
Micrographic Structure
| Ferrite
| Ferrite
| Ferrite
| Ferrite
| Ferrite
| Ferrite
| Ferrite
|
Magnetic Property
| Magnetic
| Magnetic
| Magnetic
| Magnetic
| Magnetic
| Magnetic
| Magnetic |

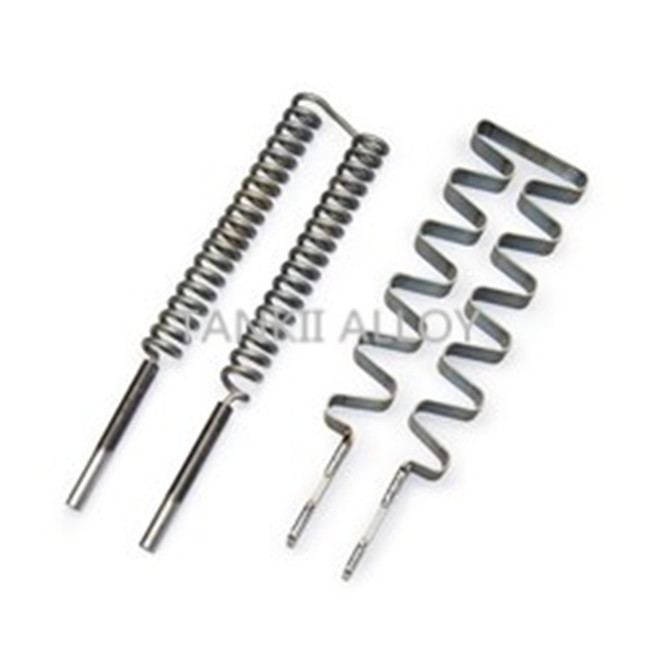

Application: heating element for industrial furnace
4. About us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business.
Welcome to call me or email to me for more info on resistohm strips.
