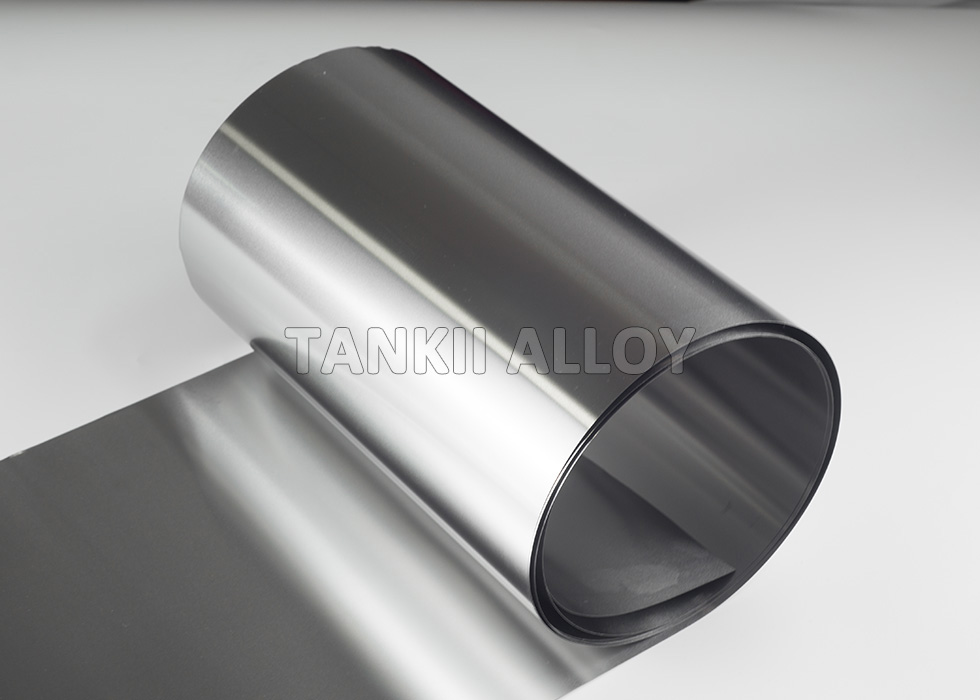

SGS Certified FeCrAl Alloy Strip With Big Width 100~1000mm Honeycomb Exhaust Purifier Use

Brand Name : TANKII

Model Number : 1Cr13Al4

Certification : ISO9001

Place of Origin : China Mainland

MOQ : Negotiation

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 tons/year

Delivery Time : 2 days after getting the payment

Packaging Details : On Spool, In Coil

Density : 7.4

Resistivity : 1.25

Width : up to 1200mm

Thickness : customized

Item : SGS Certified Fecral Alloy Strip With Big Width 100~1000mm Used For Honeycomb Exhaust Purifier

Application : elements for tail gas clean-up

Contact Now

SGS Certified Fecral Alloy Strip With Big Width 100~1000mm Used For Honeycomb Exhaust PurifierSGS Certified Fecral Alloy Strip With Big Width 100~1000mm Used For Honeycomb Exhaust Purifier

1. Description
FECRAL  Has been used extensively as heating elements in industrial furnaces and electrical kilns.
FECRAL  Has less hot strength than Tophet alloys but much higher melting point.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD

Rohs Certified Fecral Alloy Resistance Strip 1Cr13Al4 With Big Width Used For Honeycomb Carrier

2.Specification
1).Locomotive resistance strip:
Thickness:0.6mm-1.5mm
Width:60mm-90mm

Special width: up to 1200mm for 1Cr13Al4

2).Electric ceramic cooktop resistance strip:
Thickness:0.04mm-1.0mm
Width:5mm-12mm
Thickness&Width:(0.04mm-1.0mm)×12mm(above)

3).Low resistance ribbon:
Thickness&Width:(0.2mm-1.5mm)*5mm

4).Industrial furnace ribbon:
Thickness:1.5mm-3.0mm
Width:10mm-30mm





3. Details of tankii  strips

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy

Properties Grade

1Cr13Al4

0Cr25Al5

0Cr21Al6

0Cr23Al5

0Cr21Al4

0Cr21Al6Nb

0Cr27Al7Mo2

Main Chemical Composition
(%)

Cr

12.0-15.0

23.0-26.0

19.0-22.0

22.5-24.5

18.0-21.0

21.0-23.0

26.5-27.8

Al

4.0-6.0

4.5-6.5

5.0-7.0

4.2-5.0

3.0-4.2

5.0-7.0

6.0-7.0

Re

opportune

opportune

opportune

opportune

opportune

opportune

opportune

Fe

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.













Nb0.5

Mo1.8-2.2

Max Continuous Service Temperature(oC)

950

1250

1250

1250

1100

1350

1400

Resisivity 20oC (Ωmm2/m)

1.25
±0.08

1.42
±0.06

1.42
±0.07

1.35
±0.07

1.23
±0.07

1.45
±0.07

1.53
±0.07

Density(g/cm3)

7.4

7.1

7.16

7.25

7.35

7.1

7.1

Thermal Conductivity

52.7

46.1

63.2

60.2

46.9

46.1

45.2

(KJ/m@h@oC)

Coefficient of Thermal Expansion(α×10-6/oC)

15.4

16

14.7

15

13.5

16

16

Approximate Melting Point( oC)

1450

1500

1500

1500

1500

1510

1520

Tensile Strength(N/mm2)

580-680

630-780

630-780

630-780

600-700

650-800

680-830

Elongation(%)

>16

>12

>12

>12

>12

>12

>10

Section Variation

65-75

60-75

65-75

65-75

65-75

65-75

65-75

Shrink Rate (%)

Repeatedly Bend Frequency(F/R)

>5

>5

>5

>5

>5

>5

>5

Hardness (H.B.)

200-260

200-260

200-260

200-260

200-260

200-260

200-260

Continuous Service Time

no

≥80/1300

≥80/1300

≥80/1300

≥80/1250

≥50/1350

≥50/1350

Micrographic Structure

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Magnetic Property

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic


Rohs Certified Fecral Alloy Resistance Strip With bright surface 1Cr13Al4 With Big Width Used For Honeycomb Carrier
SGS Certified FeCrAl Alloy Strip With Big Width 100~1000mm Honeycomb Exhaust Purifier Use



4. Why choose us

Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
Welcome to call me or email to me for more info on resistohm strips, 1Cr13Al4 strip with good price.



1. Good Quality

2. Fast shipment

3. Small MOQ

4. Big Width for 1Cr13Al4 strip

5. Good reputation in the international market


 SGS Certified Fecral Alloy Strip With Big Width 100~1000mm Used For Honeycomb Exhaust Purifier
