Copper-based heating resistance alloy bar has lower electrical resistance,good echanical,excellent welding and anti-corrosion properties.It is used to make the key components in the thermal overload relay,low resistance thermal circuit breaker,and the electrical applicances.It is also an important material for electrical heating cable.
Principally destined for the manufacturing of low temperatures electric resistances so as heating cables,shunts,resistancces for automobile,they have a maxximum operating temperature of 752℉.
They do not therefore intervene in the field of resstances for industrial furnaces.
The most known,CuNi44(also called Constantan)presents the advantage of a very low temperature coefficient.
Their advantages are the following:
Very good resistances to corrosion.
Very good malleability
Very good solderability
Product Details
| Product name | CuNi2/A30/Alloy 30/30Alloy/MWS-30/HAI-30/Cu-Ni2 Pipe Bar Sheet Coil |
| Grade | CuNi2 |
| Cuprothal | 5 |
| Isabellehutte | Alloy30 |
| Ni(%) | 2 |
| Cu(%) | Bal |
| Mn(%) | - |
| Resistivity μΩ/m at 20℃ | 0.05 |
| Resistivity Ω/cmf at 68℉ | 30 |
| Max Operating Temp℃ | 200 |
| Density g/cm³ | 8.9 |
| TCR(x10﹣6/℃) | ﹤120 |
| Tensile Strength (Mpa) | ≧220 |
| Elongation | ≧25 |
| EMF vs Cu μV/℃ (0-100℃) | -12 |
| Melting point (℃) | 1090 |
| Magnetic Property | non |
| MOQ | 20PCS |
Company profile

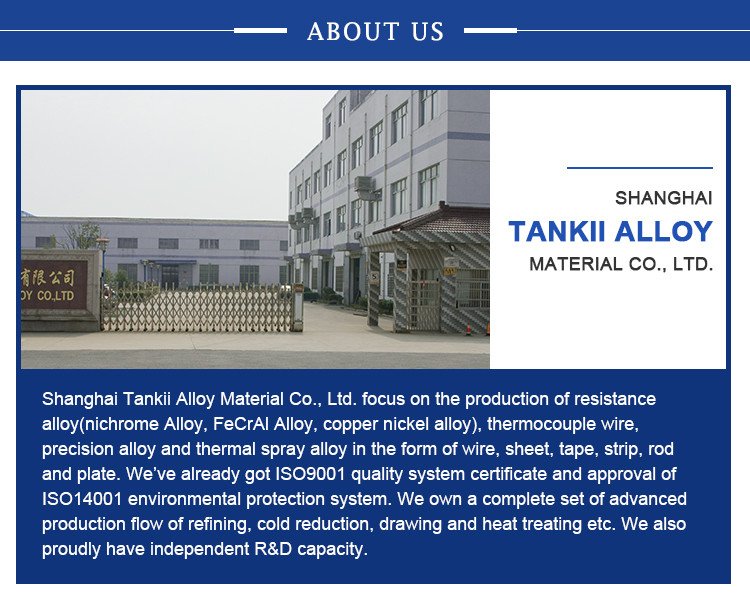

Shanghai Tankii Alloy Material Co.,Ltd focus on the production of Nichrome Alloy,Thermocouple wire ,FeCrAl alloy,precision alloy,copper Nickel alloy,thermal spray alloy etc in the form of wire ,sheet ,tape ,strip,rod and plate.
We’ve already got ISO9001 quality system certificate and approval of ISO 14001 environmental protection system.We own a complete set of advanced production flow of refining ,cold reduction,drawing and heat treating etc. We also proudly have independentR&D capacity.
Shanghai Tankii Alloy Material Co.,Ltd has accumulated lots of experiences over35 years in this field.During these years,more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life,which make our company keep blooming and invincible in the competitive market.
Based on the principle of "first quality ,sincere service",our managing ideology is pursuing technology innovation and creating the top brand in the alloy field.We persist in Quality-the foundation of the survival.It is our forever ideology
to serve you with full heart and soul.We committed to provide customers all over the world with high-quality ,competitive products and perfect service.
Our products,such as nichrome alloy,precision alloy ,thermocouple wire ,fecral alloy ,copper nickel alloy,thermal spray alloy have been exported to over 60 countries in the world.
We are willing to establish strong and long-time partner ship with our customers.
Most complete range of products dedicated to resistance,Thermocouple and furnace manufacturers.
Quality with end to end production control
Techniccal support and customer service.
FAQ
What is your working time?
Monday-Friday :8:30 Am -17:30PM(Beijing time,GMT+08.00)
What is the lead time?
Usually 15-30 day.It depends on the product and quantity.
