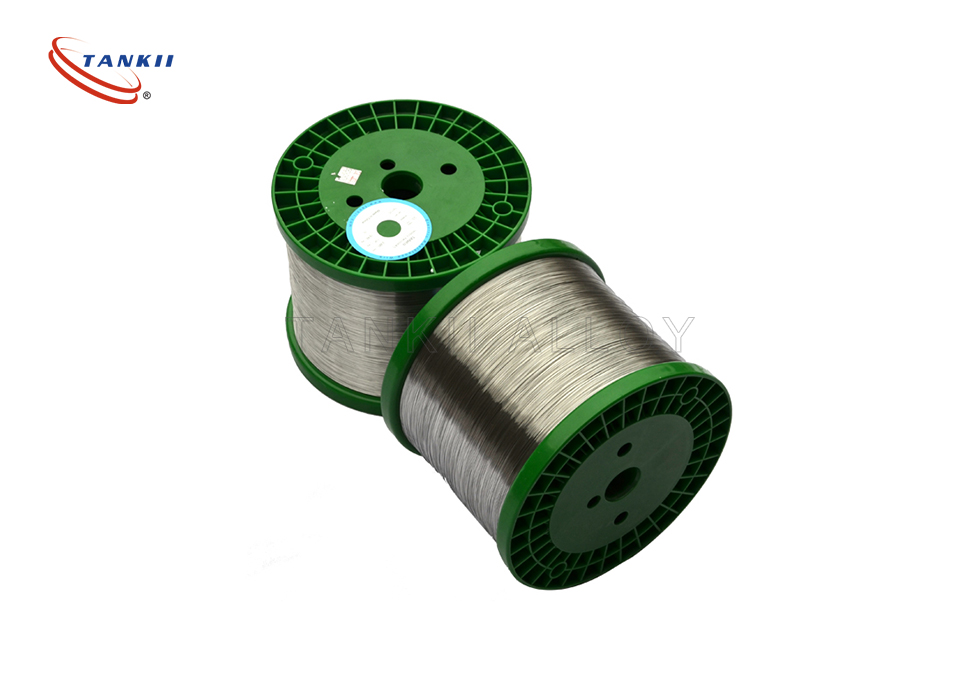

High Resistance Electrical heating Alloy FeCrAL Wire 0.5mm On DIN250 Spool 20kg
FeCrAl alloy is high resistance and electrical heating alloy. FeCrAl Alloy can reach process temperatures of 2192 to 2282°F, corresponding to a resistance temperature of 2372°F.
In order to improve anti-oxidation ability and increase working life, we usually put addition of rare earths in the alloy, such as La+Ce, Yttrium, Hafnium, Zirconium, etc.
It is normally used in electrical furnace, glass top hobs, quartz tube heaters, resistors, catalytic converter, heating elements and etc.
The heat in the traditional light wave furnace cannot be heated quickly, nor can it be stir-fried, and it is also a waste of energy. In order to overcome the deficiency of the existing kitchen cookers, a new type of kitchen cookers, the advanced electric ceramic stove, has been developed at home and abroad.
As an enterprise specializing in the development of electrothermal alloy, our company has designed and developed a new type of ferrochrome aluminum foil for the electric ceramic furnace, which is specially designed and developed for the heating element of the electric ceramic furnace.
1. Description
FECRAL Has been used extensively as heating elements in industrial furnaces and electrical kilns.
FECRAL Has less hot strength than Tophet alloys but much higher melting point.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
High Resistance Electrical heating Alloy FeCrAL Wire 0.5mm On DIN250 Spool 20kg
2.Specification
1).Locomotive resistance strip:
Thickness:0.6mm-1.5mm
Width:60mm-90mm
2).Electric ceramic cooktop resistance strip:
Thickness:0.04mm-1.0mm
Width:5mm-12mm
Thickness&Width:(0.04mm-1.0mm)×12mm(above)
3).Low resistance ribbon:
Thickness&Width:(0.2mm-1.5mm)*5mm
4).Industrial furnace ribbon:
Thickness:1.5mm-3.0mm
Width:10mm-30mm
5).Wire: Diameter:0.05mm-10.0mm
6) Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
High Resistance Electrical heating Alloy FeCrAL Wire 0.5mm On DIN250 Spool 20kg
3. Details of tankii material
Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
|
Properties Grade
| 1Cr13Al4
| 0Cr25Al5
| 0Cr21Al6
| 0Cr23Al5
| 0Cr21Al4
| 0Cr21Al6Nb
| 0Cr27Al7Mo2
|
Main Chemical Composition
(%)
| Cr
| 12.0-15.0
| 23.0-26.0
| 19.0-22.0
| 22.5-24.5
| 18.0-21.0
| 21.0-23.0
| 26.5-27.8
|
Al
| 4.0-6.0
| 4.5-6.5
| 5.0-7.0
| 4.2-5.0
| 3.0-4.2
| 5.0-7.0
| 6.0-7.0
|
Re
| opportune
| opportune
| opportune
| opportune
| opportune
| opportune
| opportune
|
Fe
| Bal.
| Bal.
| Bal.
| Bal.
| Bal.
| Bal.
| Bal.
|
|
|
|
|
|
| Nb0.5
| Mo1.8-2.2
|
Max Continuous Service Temperature(oC)
| 950
| 1250
| 1250
| 1250
| 1100
| 1350
| 1400
|
Resisivity 20oC (Ωmm2/m)
| 1.25
±0.08
| 1.42
±0.06
| 1.42
±0.07
| 1.35
±0.07
| 1.23
±0.07
| 1.45
±0.07
| 1.53
±0.07
|
Density(g/cm3)
| 7.4
| 7.1
| 7.16
| 7.25
| 7.35
| 7.1
| 7.1
|
Thermal Conductivity
| 52.7
| 46.1
| 63.2
| 60.2
| 46.9
| 46.1
| 45.2
|
(KJ/m@h@oC)
|
Coefficient of Thermal Expansion(α×10-6/oC)
| 15.4
| 16
| 14.7
| 15
| 13.5
| 16
| 16
|
Approximate Melting Point( oC)
| 1450
| 1500
| 1500
| 1500
| 1500
| 1510
| 1520
|
Tensile Strength(N/mm2)
| 580-680
| 630-780
| 630-780
| 630-780
| 600-700
| 650-800
| 680-830
|
Elongation(%)
| >16
| >12
| >12
| >12
| >12
| >12
| >10
|
Section Variation
| 65-75
| 60-75
| 65-75
| 65-75
| 65-75
| 65-75
| 65-75
|
Shrink Rate (%)
|
Repeatedly Bend Frequency(F/R)
| >5
| >5
| >5
| >5
| >5
| >5
| >5
|
Hardness (H.B.)
| 200-260
| 200-260
| 200-260
| 200-260
| 200-260
| 200-260
| 200-260
|
Continuous Service Time
| no
| ≥80/1300
| ≥80/1300
| ≥80/1300
| ≥80/1250
| ≥50/1350
| ≥50/1350
|
Micrographic Structure
| Ferrite
| Ferrite
| Ferrite
| Ferrite
| Ferrite
| Ferrite
| Ferrite
|
Magnetic Property
| Magnetic
| Magnetic
| Magnetic
| Magnetic
| Magnetic
| Magnetic
| Magnetic |
High Resistance Electrical heating Alloy FeCrAL Wire 0.5mm On DIN250 Spool 20kg
Typical application areas of air heating cassettes
-
Pre-heating of aluminium
-
Homogenising of aluminium
-
Heat treatment in the metallurgical industry
-
Drying of ore concentrates
-
Drying of materials in the wood processing industry
-
Roasting and drying in the food industry
-
Baking in large bakery ovens
-
Drying of chemicals
-
Drying and stoving of paints (stoving furnaces)
High Resistance Electrical heating Alloy FeCrAL Wire 0.5mm On DIN250 Spool 20kg
If have any inquiry on FeCrAl Alloy wires , please contact us freely.
