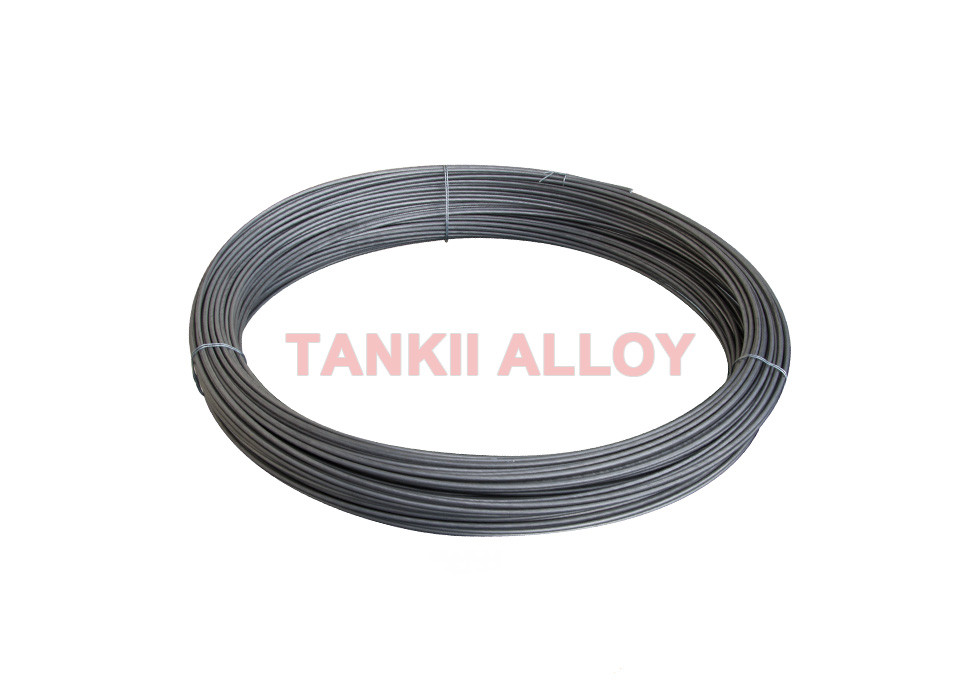

K Type Solid Thermocouple Bare Wire Rod 6mm / 8mm / 10mm For Male Connector

Shanghai Tankii Alloy Material Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

K Type Solid Thermocouple Bare Wire Rod 6mm / 8mm / 10mm For Male Connector

Brand Name : Tankii

Model Number : Chromel Alumel

Certification : ISO9001

Place of Origin : China Mainland

MOQ : 10kg per leg

Price : Negotiation

Payment Terms : T/T, Paypal, Western Union, MoneyGram,

Supply Ability : 1000Ton per year

Delivery Time : 5-7 days after getting the payment

Packaging Details : Standard exoprt package in carton box or wooden box

Material : Chromel alumel

Surface : Bright

Diameter : ≥ 0.1mm

Wire Type : solid wire

Insulation : Customized

Wire class : I , II, III

Leading time : 5~20 days after getting the payment

Contact Now



K Type Thermocouple Rod 6mm / 8mm / 10mm Used In Thermocouple Connector's solid Pin



Quick Description



A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



Characteristics:

The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.



Our products conform to the standards of IEC584 -1and IEC-2.


Thermocouple strips, thermocouple connectors are available.
Application Range of thermocouple wire:

1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation


K Type Thermocouple Rod 6mm / 8mm / 10mm Used In Thermocouple Connector's solid Pin

Thermocouple Type and Temperature Range

Thermocouple type and index



Measurement Range

Type



Index





PtRh30-PtRh6

B 600~1700



PtRh13-Pt

R 0~1600



PtRh10-Pt

S 0~1600



NiCr-NiSi

K -200~1300



NiCr-CuNi (constantan)

E -200~900



Fe-CuNi (constantan)

J -40~750



Cu-CuNi (constantan)

T -200~350



NiCrSi-NiSi

N -200~1300


The allowable grade and Tolerance are obtained at 0℃

Thermocouple

Type

Grade

Temperature range

Allowable Tolerance /℃
Type B 600~1700 ±0.25% t
600~800 ±4
800~1700 ±0.5%t
Type R(S) 0~1100 ±1
1100~1600 ±[1+(t-1100) ×0.3%]
0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type E -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type J -40~750 ±1.5℃ or ±0.4%t
-40~750 ±2.5℃ or ±0.75%t
Type T -40~350 ±0.5℃ or ±0.4%t
-40~350 ±1.0℃ or ±0.75%t
-200~40 ±1.0℃ or ±1.5%t



Application:

Solid pin for male connector



 Delivery and Packing of thermocouple wire:

1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty



Welcome to call me or email to me for more information on thermocouple wire.
